CSK head Inlock Type Blind Rivet

Product overview: The main products are: welding nut series, tire nut series, rivet nut series, rivet series all kinds of non-standard products.

Product Keywords: Rivet nut, square welding nut, hexagonal welding nut

Classification:

Structual Blind Rivet

Product Details

Steel/Steel										D*L

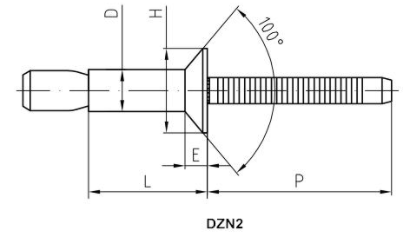

D	L	H				E	P			Part No.
	+0.99/-0	max		min	max	max	min	N	N
Φ4.8±0.09	12	8.8	5.0-5.2	3.2	8.4	2.2	27	≥4100	≥5400	DZW2S048*12
	16			3.2	12.7					DZW2S048*16
Φ6.4±0.11	16	10.6	6.6-7.0	4.1	12.1	2.4	27	≥8230	≥10675	DZW2S064*16
	22			4.1	17.5					DZW2S064*22
Surface treatment: Zinc plated

Stainless steel/Stainless steel										D*L
D	L	H				E	P			Part No.
	+0.99/-0	max		min	max	max	min	N	N
Φ4.8±0.09	12	8.8	5.0-5.2	3.2	8.4	2.2	27	≥5100	≥6400	DZW2U048*12
	16			3.2	12.7					DZW2U048*16
Φ6.4±0.11	16	10.6	6.7-6.9	4.1	12.1	2.4	27	≥9000	≥11000	DZW2U064*16
	22			4.1	17.5					DZW2U064*22
Surface treatment: Polished
